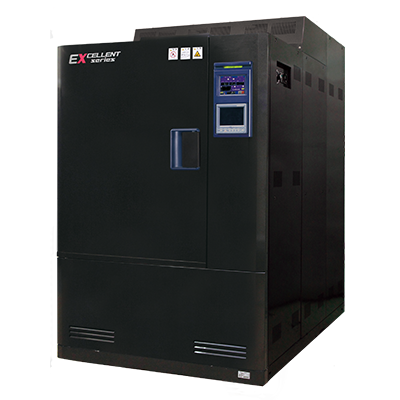

Temperature & Humidity Chamber
Enhance Daily Reliability Testing with Higher Performance
Reliability evaluation tests take a significant amount of time.To shorten the daily testing evaluation time, we provide a type of constant temperature humidity chamber with fast heating and cooling times.We also offer high thermal load type products that can accommodate testing evaluations with high thermal loads, including powered-on tests.
Enhance Daily Reliability Testing with Higher Performance
Reliability evaluation tests take a significant amount of time.To shorten the daily testing evaluation time, we provide a type of constant temperature humidity chamber with fast heating and cooling times.We also offer high thermal load type products that can accommodate testing evaluations with high thermal loads, including powered-on tests.
Shortening the test evaluation time
Fast heating and cooling times greatly reduce transition time to the set temperature.This can significantly reduce the time for daily test evaluation.
Support for test evaluation in an energized state
Displays and automotive PCUs generate large amounts of heat during durability testing, requiring equipment capable of handling thermal loads.The "Excellent" type, designed to support high thermal loads, can safely and stably conduct test evaluations even when the specimens generate heat at "1000 W at 85℃/85% RH and 2000 W at -40℃."
Introduction to the 3 Types
Rapid Temperature Change Type (10 ℃/ min or 5 ℃/ min)
Rapid Temperature Change Type
(10 ℃/ min or 5 ℃/ min)
During −40℃⇔ 85℃ Evaluation Test, Achieving a Temperature Change Rate of 10 or 5℃/ min
| Type | Temperature range | Humidity range (for humidity-capable chamber) |
Test chamber capacity | Temperature change rate |
| Rapid Temperature Change | -70 to 150℃ | 20 to 98％RH | 306L | 10℃ / min. |
| 800L | 5℃ / min. |
During −40℃⇔ 85℃ Evaluation Test, Achieving a Temperature Change Rate of 10 or 5℃/ min
Please scroll horizontally to view.
| Type | Temperature range | Humidity range |
Test chamber capacity | Temperature change rate |
| Rapid Temperature Change | -70 to ＋150℃ | 20 to 98％RH | 306L | 10℃ / min. |
| 800L | 5℃ / min. |
At -40℃⇔85℃, gradient control is possible at a temperature change rate of 10℃/min or 5℃/min. Therefore, this system is useful for shortening evaluation tests through rapid temperature changes.
At -40℃⇔85℃, gradient control is possible at a temperature change rate of 10℃/min or 5℃/min. Therefore, this system is useful for shortening evaluation tests through rapid temperature changes.
Quicker Evaluation Testing
The temperature rises and drops quickly, so a drastically shorter time is required to transition to the set temperature. This system reduced testing time by 50% compared to the basic type (low-temperature type).
Quicker Evaluation Testing
The temperature rises and drops quickly, so a drastically shorter time is required to transition to the set temperature. This system reduced testing time by 50% compared to the basic type (low-temperature type).
Operation details (testing conditions)
Temperature cycle operation between -55°C (60 min.) and 125°C (60 min.).
(Maximum performance during temperature change)
| Type | Test chamber capacity | Temperature Rise Time | Temperature Drop Time | Test Time |
| Basic (low-temperature type) | 306L | 41 min. | 150 min. | 52 hours |
| Rapid Temperature Change | 306L | 18 min. | 18 min. | 26 hours |
Temperature cycle operation between -55°C (60 min.) and 125°C (60 min.).
(Maximum performance during temperature change)
Please scroll horizontally to view.
| Type | Test chamber capacity | Temperature Rise Time |
Temperature Drop Time | Test Time |
| Basic (low-temperature type) |
306L |
41 min. | 150 min | 52 hours |
| Rapid Temperature Change | 306L | 18 min. | 18 min. | 26 hours |
*Values listed above will vary depending on usage conditions such as ambient temperature. Refer to the model specifications for details.
Model-specific options
We offer a wide range of other options.
| Item | Specification |
| Air-Cooling Remote Condenser | The Air-cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside. |
Model-specific options
We offer a wide range of other options.
| Item | Specification |
| Air-Cooling Remote Condenser | The Air-cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside |
Outline specifications Rapid Temperature Change Type (10 ℃/ min or 5 ℃/ min)
Outline specifications
Rapid Temperature Change Type
(10 ℃/min or 5 ℃/min)
Please scroll horizontally to view.
| Item | Temperature and humidity chambers | Temperature chambers | ||||||
| EC-35EXH | EC-85EXH | EC-35EXT | EC-85EXT | |||||
| Performance | Temperature range | -70 to ＋150℃ | ||||||
| Humidity range | 20 to 98％RH | ー | ||||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃ / ±3.0％RH | ±0.3℃ | |||||
| 100.1℃ or higher | 0.5℃ | ±0.5℃ | ||||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 3.0℃/10.0%RH | 3.0℃ | |||||
| 100.1℃ or higher | 5.0℃ | 5.0℃ | ||||||
| Spatial temperature/ humidity deviation (no load, no sample) |
100.0℃ or lower | 2.0℃/8.0%RH | 2.0℃ | |||||
| 100.1℃ or higher | 3.0℃ | 3.0℃ | ||||||
| Temperature change rate (no load, no sample, rapid mode) |
Drop | 10.0℃ / min. （＋128 to -48℃） |
5.0℃ / min. （＋128 to -48℃） |
10.0℃ / min. （＋128 to -48℃） |
5.0℃ / min. （＋128 to -48℃） |
|||
| Rise | 10.0℃ / min. （-48 to ＋128℃） |
5.0℃ / min. （-48 to ＋128℃） |
10.0℃ / min. （-48 to ＋128℃） |
5.0℃ / min. （-48 to ＋128℃） |
||||
| Time to reach extreme temperatures (no load, no sample, rapid mode) |
Drop | Within 20 min. （＋20 to -70℃） |
Within 30 min. （＋20 to -70℃） |
Within 20 min. （＋20 to -70℃） |
Within 30 min. （＋20 to -70℃） |
|||
| Rise | Within 20 min. （＋20 to ＋150℃） |
Within 30 min. （＋20 to ＋150℃） |
Within 20 min. （＋20 to ＋150℃） |
Within 30 min. （＋20 to ＋150℃） |
||||
| Test chamber capacity | 306L | 800L | 306L | 800L | ||||
| Item | Temperature and humidity chambers | Temperature chambers | ||||||
| EC-35EXH | EC-85EXH | EC-35EXT | EC-85EXT | |||||
| Performance | Temperature range | -70 to ＋150℃ | ||||||
| Humidity range | 20 to 98％RH | ー | ||||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃ / ±3.0％RH | ±0.3℃ | |||||
| 100.1℃ or higher | 0.5℃ | ±0.5℃ | ||||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 3.0℃/10.0%RH | 3.0℃ | |||||
| 100.1℃ or higher | 5.0℃ | 5.0℃ | ||||||
| Spatial temperature/ humidity deviation (no load, no sample) |
100.0℃ or lower | 2.0℃/8.0%RH | 2.0℃ | |||||
| 100.1℃ or higher | 3.0℃ | 3.0℃ | ||||||
| Temperature change rate (no load, no sample, rapid mode) |
Drop | 10.0℃ / min. （＋128 to -48℃） |
5.0℃ / min. （＋128 to -48℃） |
10.0℃ / min. （＋128 to -48℃） |
5.0℃ / min. （＋128 to -48℃） |
|||
| Rise | 10.0℃ / min. （-48 to ＋128℃） |
5.0℃ / min. （-48 to ＋128℃） |
10.0℃ / min. （-48 to ＋128℃） |
5.0℃ / min. （-48 to ＋128℃） |
||||
| Time to reach extreme temperatures (no load, no sample, rapid mode) |
Drop | Within 20 min. （＋20 to -70℃） |
Within 30 min. （＋20 to -70℃） |
Within 20 min. （＋20 to -70℃） |
Within 30 min. （＋20 to -70℃） |
|||
| Rise | Within 20 min. （＋20 to ＋150℃） |
Within 30 min. （＋20 to ＋150℃） |
Within 20 min. （＋20 to ＋150℃） |
Within 30 min. （＋20 to ＋150℃） |
||||
| Test chamber capacity | 306L | 800L | 306L | 800L | ||||
*Can be operated in an ambient temperature from 0 to 40℃, a cooling water inlet temperature from 5 to 38℃, and a power supply voltage within ±10% of the rated voltage.
*Performance values are given in accordance with JTMA Standard JTMK07/JTMK09 under the following conditions:
(1) There is no load and no sample in the testing chamber.
(2) The power supply voltage is within ±5% of the rated voltage.
(3) The ambient temperature is from 5 to 35℃ and the cooling water inlet temperature is from 15 to 30℃.
(4) Values given for the temperature change rate and the time to reach extreme temperatures are applicable when the system is set to "rapid temperature change" with a sample set (iron 5 kg), an ambient temperature of 23℃, a cooling water inlet temperature of 25℃, and no water in the heating tray.
"Rapid temperature change" setting: Available only during constant temperature operation. The humidity cannot be set or controlled (EC-35EXH, EC-85EXH).
Rapid Temperature Change Type (15℃/ min or 20 ℃/ min)
Rapid Temperature Change Type
(15℃/ min or 20 ℃/ min)
Achieving Temperature Change Rate of 15℃/ min or 20℃/ min for air within the chamber
| Type | Temperature range | Humidity range |
Test chamber capacity | *1 Temperature Change Rate |
| Rapid Temperature Change | -70 to ＋180℃ | 20 to 98％RH | 235L | *2 15℃ / min. |
| 20 to 95％RH | 800L | *2 15℃ / min. | ||
| 800L | *2 20℃ / min. |
Achieving Temperature Change Rate of 15℃/min or 20℃/min for air within the chamber
Please scroll horizontally to view.
| Type | Temperature range | Humidity range |
Test chamber capacity | *1Temperature Change Rate |
| Rapid Temperature Change | -70 to ＋180℃ | 20 to 98％RH | 235L | *215℃ / min. |
| 20 to 95％RH | 800L | *215℃ / min. | ||
| 800L | *220℃ / min. |
*1. The set temperature range is -70℃⇔ 180℃.
*2. This is the average temperature change rate from -45℃⇔ 155℃.
This type achieved average temperature change rates of 15℃/ min or 20℃/min in the +155℃ ⇔ -45℃ cycle, during temperature drop and rise.
Therefore, this system is useful for shortening evaluation tests through rapid temperature changes.
*1. The set temperature range is -70℃⇔ 180℃.
*2. This is the average temperature change rate from -45℃⇔ 155℃.
This type achieved average temperature change rates of 15℃/min or 20℃/min in the +155℃ ⇔ −45℃ cycle, during temperature drop and rise.
Therefore, this system is useful for shortening evaluation tests through rapid temperature changes.
Supports IEC 60068-2-14 Test Nb (Change of temperature with specified rate of change)
This chamber reproduces the test conditions specified in the standard and subjects the sample to thermal stress caused by temperature changes. It can be used to evaluate thermal fatigue failures and durability.
Supports IEC 60068-2-14 Test Nb (Change of temperature with specified rate of change)
This chamber reproduces the test conditions specified in the standard and subjects the sample to thermal stress caused by temperature changes.
It can be used to evaluate thermal fatigue failures and durability.
Equipped with a temperature cycling function
This system features the temperature cycle operation function, which allows the configuration of settings such as high-temperature soaking, low-temperature soaking, lamp control, and sample temperature control.
The function accommodates customer testing needs through detailed control settings.
Equipped with a temperature cycling function
This system features the temperature cycle operation function, which allows the configuration of settings such as high-temperature soaking, low-temperature soaking, lamp control, and sample temperature control.
The function accommodates customer testing needs through detailed control settings.
<Setting ranges>
| High-temperature soaking | 180℃ to 60℃ |
| Low-temperature soaking | 0 to -70℃ |
| Soaking time | 1 min. to 99 hours 59 min. |
| Lamp rate | 5 to 25℃ / min. |
<Setting ranges>
| High-temperature soaking | 180℃ to 60℃ |
| Low-temperature soaking | 0 to -70℃ |
| Soaking time | 1 min. to 99 hours 59 min. |
| Lamp rate | 5 to 25℃ / min. |
＜Example for illustrative purposes＞
Model-specific options
We offer a wide range of other options.
| Item | Specification |
| Sample temperature sensor | Pt sensor (Pt100 Ω) |
| Air-Cooling Remote Condenser | The Air-cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside. (Compatible with EXHH, EXTH.) |
Model-specific options
We offer a wide range of other options.
| Item | Specification |
| Sample temperature sensor | Pt sensor (Pt100 Ω) |
| Air-Cooling Remote Condenser | The Air-cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside. (Compatible with EXHH, EXTH.) |
Outline specifications Rapid Temperature Change Type (15℃/ min or 20 ℃/ min)
Please select one of the options to view the specifications. （The options are under the table.）
1 : Temperature and humidity chambers
2 : Temperature chambers
Outline specifications
Rapid Temperature Change Type
(15℃/ min or 20 ℃/ min)
Please select one of the options to view the specifications.（The options are under the table.）
1 : Temperature and humidity chambers
2 : Temperature chambers
1 : Temperature and humidity chambers
2 : Temperature chambers
*Can be operated in an ambient temperature from 0 to 40℃, a cooling water inlet temperature from 5 to 38℃, and a power supply voltage within ±10% rated voltage.
*Performance values are given in accordance with JTMA Standard JTMK07/JTMK09 under the following conditions:
(1) There is no load and no sample.
(2) The power supply voltage is within ±5% of the rated voltage.
(3) The ambient temperature is from 5 to 35℃ and the cooling water inlet temperature is from 15 to 30℃.
However, values given for the temperature change rate and the time to reach extreme temperatures are applicable when the system is set to rapid mode and at an ambient temperature of 23℃ and a cooling water inlet temperature of 25℃.
Heat Generation Load 1,000 W Type
Enhanced Heat Load Performance Enables Durability Testing of
Products While Powered (e.g., LCDs)
| Type | Temperature range | Humidity range |
Test chamber capacity |
| Heat Generation Load 1,000 W | -70 to ＋150℃ | 20 to 98％RH | 800L |
Enhanced Heat Load Performance Enables Durability Testing of Products While Powered (e.g., LCDs)
| Type | Temperature range | Humidity range |
Test chamber capacity |
| Heat Generation Load 1,000 W | -70 to ＋150℃ | 20 to 98％RH | 800L |
During high-load mode operation, this system can handle heat loads at high-temperature/high-humidity conditions and low-temperature conditions.
| Testing Conditions | Permissible heat generation |
| 60℃/ 90％RH | 1,000W |
| 85℃/ 85％RH | 1,000W |
| -40℃ | 2,000W |
During high-load mode operation, this system can handle heat loads at high-temperature/high-humidity conditions and low-temperature conditions.
| Testing Conditions | Permissible heat generation |
| 60℃/ 90％RH | 1,000W |
| 85℃/ 85％RH | 1,000W |
| -40℃ | 2,000W |
Permissible heat generation
Conditions
| Power supply | 200V 50/ 60Hz |
| Ambient temperature | 23℃ |
| Cooling water inlet temperature | 25℃ |
| Operation mode | High load |
Permissible heat generation
Conditions
| Power supply | 200V 50/ 60Hz |
| Ambient temperature | 23℃ |
| Cooling water inlet temperature | 25℃ |
| Operation mode | High load |
Equipped with Operation Mode Selection Function
The system is equipped with an operation mode selection function that allows selection of refrigeration performance. Three modes (Energy-Saving, Standard, and High-Load) can be selected, enabling optimal evaluation tests according to the test conditions.
| Energy-Saving Mode | Reduced system performance （Set when there is no heat generation load） |
| High-Load Mode | Increased system performance （Set when the heat generation load is high） |
Equipped with Operation Mode Selection Function
The system is equipped with an operation mode selection function that allows selection of refrigeration performance. Three modes (Energy-Saving, Standard, and High-Load) can be selected, enabling optimal evaluation tests according to the test conditions.
| Energy-Saving Mode | Reduced system performance （Set when there is no heat generation load） |
| High-Load Mode | Increased system performance （Set when the heat generation load is high） |
Space-Saving Design
*Compared with the Excellent models ES-85EXH and EC-85EX-HL (both with a test chamber capacity of 800 L).
The system installation area has been reduced by approximately 19%.
| Type | Product dimensions (mm) |
| Rapid Temperature Change (10 ℃/ min or 5 ℃/ min) |
Width 1,470 × Depth 2,240 × Height 2,000 |
| Heat Generation Load 1,000 W | Width 1,470 × Depth 1,800 × Height 2,020 |
Space-Saving Design
*Compared with the Excellent models ES-85EXH and EC-85EX-HL (both with a test chamber capacity of 800 L).
The system installation area has been reduced by approximately 19%.
| Type | Product dimensions (mm) |
| Rapid Temperature Change (10 ℃/ min or 5 ℃/ min) |
Width 1,470 × Depth 2,240 × Height 2,000 |
| Heat Generation Load 1,000 W | Width 1,470 × Depth 1,800 × Height 2,020 |
Outline specifications Heat Generation Load 1,000 W Type
Outline specifications
Heat Generation Load 1,000 W Type
Please scroll horizontally to view.
| Item | Temperature and humidity chamber | ||||
| EC-85EX-HL | |||||
| Performance | Temperature range | -70 to ＋150℃ | |||
| Humidity range | 20 to 98％RH | ||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃/ ±3.0%RH | |||
| 100.1℃ or higher | ±0.5℃ | ||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 3.0℃/ 10％RH | |||
| 100.1℃ or higher | 5.0℃ | ||||
| Spatial temperature /humidity deviation (no load, no sample) |
100.0℃ or lower | 2.0℃/ 8.0%RH | |||
| 100.1℃ or higher | 3.0℃ | ||||
| Temperature change rate (no load, no sample) |
Drop | 2.5℃/ min. （＋128 to -48℃） | |||
| Rise | 5.0℃/ min. （-48 to ＋128℃） | ||||
| Time to reach temperature extreme (no load, no sample) |
Drop | Within 45 min. （＋20 to -70℃） | |||
| Rise | Within 45 min. （＋20 to ＋150℃） | ||||
| Test chamber capacity | 800L | ||||
| Item | Temperature and humidity chamber | ||||
| EC-85EX-HL | |||||
| Performance | Temperature range | -70 to ＋150℃ | |||
| Humidity range | 20 to 98％RH | ||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃/ ±3.0%RH | |||
| 100.1℃ or higher | ±0.5℃ | ||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 3.0℃/ 10％RH | |||
| 100.1℃ or higher | 5.0℃ | ||||
| Spatial temperature /humidity deviation (no load, no sample) |
100.0℃ or lower | 2.0℃/ 8.0%RH | |||
| 100.1℃ or higher | 3.0℃ | ||||
| Temperature change rate (no load, no sample) |
Drop | 2.5℃/ min. （＋128 to -48℃） | |||
| Rise | 5.0℃/ min. （-48 to ＋128℃） | ||||
| Time to reach temperature extreme (no load, no sample) |
Drop | Within 45 min. （＋20 to -70℃） | |||
| Rise | Within 45 min. （＋20 to ＋150℃） | ||||
| Test chamber capacity | 800L | ||||
*Can be operated in an ambient temperature from 0 to 40℃, a cooling water inlet temperature from 5 to 38℃, and a power supply voltage within ±10% of the rated voltage. Although the system cannot perform as described in Note 2 within this operation range, it can operate continuously within this range without stopping due to the safeguard.
*Performance values are given in accordance with JTMA Standard JTMK09, under these conditions:
(1) There is no load and no sample;
(2) The power supply voltage is within ±5% of the rated voltage; and
(3) The ambient temperature is from 5 to 35℃and the cooling water inlet temperature is from 15 to 30℃.
However, values given for the temperature change rate and the time to reach extreme temperatures are at an ambient temperature of 23℃.
