Thermal Shock
It contributes to reducing development time and saving energy
In the rapidly accelerating competitive development environment, defrosting operations during thermal shock testing lead to significant time loss.The Excellent Series thermal shock testers are capable of 1,000 cycles of continuous operation. This contributes to shorter development times and energy savings.
It contributes to reducing development time and saving energy.
In the rapidly accelerating competitive development environment, defrosting operations during thermal shock testing lead to significant time loss.The Excellent Series thermal shock testers are capable of 1,000 cycles of continuous operation. This contributes to shorter development times and energy savings.
It can achieve 1,000 cycles without defrosting
In the rapidly accelerating competitive development environment, defrosting operations during thermal shock testing lead to significant time loss.The Excellent Series thermal shock testers are capable of 1,000 cycles of continuous operation. This contributes to shorter development times and energy savings.
Long-Term Cycle Testing
The test interruption function and the 5-cycle count function are standard features, making it easy to perform checks during testing and to add samples mid-test. The liquid tank type has improved airtightness, significantly reducing heat transfer fluid consumption and facilitating continuous operation.
Introduction to Air-to-Air and Liquid-to-Liquid Testing Equipment

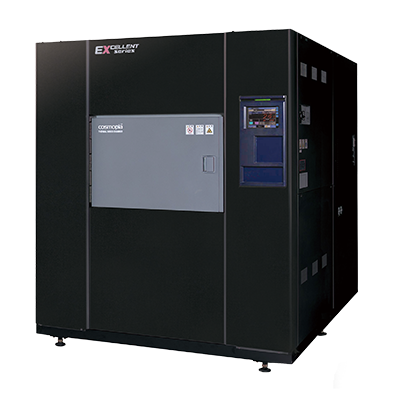

Air-to-Air Thermal Shock Testing Equipment
Continuous operation possible for 500 or 1,000 cycles without defrosting
| Series | Cooling method | Test chamber capacity | Continuous operation cycles |
| Excellent (Air-to-Air) |
Water-cooling | 200L | 500 |
| 70L | 1000 |
Continuous operation possible for 500 or 1,000 cycles without defrosting
Please scroll horizontally to view.
| Series | Cooling method | Test chamber capacity | Continuous operation cycles |
| Excellent (Air to Air) |
Water-cooling | 200L | 500 |
| 70L | 1000 |
Energy Saving and Efficient Test Operation
*Compared with Standard (ES-76LM) and Excellent (ES-76EX) models.
The system is capable of 1,000 continuous cycles without defrosting. Test interruptions for defrosting have been reduced, shortening testing time by approximately 30%. Also, power consumption has been reduced by approximately 25%. It enables energy-saving and efficient test operation.
| Series | Type | Test time | power consumption |
| Standard | MIL Standard | 4,300 min. |
11,316kWh |
| Excellnet | Air-to-Air Thermal Shock Testing Equipment | 3,000 min. | 8,500kWh |
| Series | Type | Test time | power consumption |
| Standard | MIL Standard | 4,300 min. | 11,316kWh |
| Excellnet | Air-to-Air Thermal Shock Testing Equipment | 3,000 min. | 8,500kWh |
Options
We offer a wide range of options.
| Item | Specification |
| Temperature recorder | Select either paperless or a paper chart (100 mm width; 1 pen, 6 dots). |
| Emergency stop switch | Shuts power down via the earth leakage circuit breaker. |
| Communication interface | Select either RS-485, or web interface (including Ethernet). |
| Communication interface cable | RS-232C：4m, 10m |
| Cable hole | φ50mm × 1, added to standard cable hole (left side surface) area |
| Sensor switching function | Select either upwind side or downwind side for the testing chamber temperature control point (can be switched). |
| Internal air compressor | Air compressor output 0.2 kW |
| Power supply terminal block for air compressor connection | For three-phase 200V 0.2 kW or 0.4 kW |
| Cycle counter | Eight digits, with or without reset function |
| Signal indicator | Three colors (Green: Operating, Yellow: Power supply, Red: Error) |
| Sample temperature monitor system | Begins testing time count based on the measured surface temperature of the sample |
| Expanded high-temperature testing temperature range | Testing temperature range 60 to 200°C |
| Air-Cooling Remote Condenser | The Air-Cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside. |
Options
We offer a wide range of options.
Please scroll horizontally to view.
| Item | Specification |
| Temperature recorder | Select either paperless or a paper chart (100 mm width; 1 pen, 6 dots). |
| Emergency stop switch | Shuts power down via the earth leakage circuit breaker. |
| Communication interface | Select either RS-485, or web interface (including Ethernet). |
| Communication interface cable | RS-232C：4m, 10m |
| Cable hole | φ50mm × 1, added to standard cable hole (left side surface) area |
| Sensor switching function | Select either upwind side or downwind side for the testing chamber temperature control point (can be switched). |
| Internal air compressor | Air compressor output 0.2 kW |
| Power supply terminal block for air compressor connection | For three-phase 200V 0.2 kW or 0.4 kW |
| Cycle counter | Eight digits, with or without reset function |
| Signal indicator | Three colors (Green: Operating, Yellow: Power supply, Red: Error) |
| Sample temperature monitor system | Begins testing time count based on the measured surface temperature of the sample |
| Expanded high-temperature testing temperature range | Testing temperature range 60 to 200°C |
| Air-Cooling Remote Condenser | The Air-Cooling Remote Condenser can be installed outside. Therefore, waste heat from condenser is expelled outside. |
Outline specifications Air-to-Air Thermal Shock Testing Equipment
Outline specifications
Air-to-Air Thermal Shock Testing Equipment
Please scroll horizontally to view.
| Item | Air-to-Air Thermal Shock Testing Equipment | ||||||
| ES-76EX | ES-206EX | ||||||
| Type | Stationary sample type, cool/hot air switchable, two/three zone switchable | ||||||
| Performance | Testing temperature range | Low-temperature testing: -70 to 0℃, High-temperature testing: 80 to 200℃ | |||||
| Temperature fluctuation margin | ±0.5℃ | ||||||
| Temperature rise time (high-temperature chamber) |
Room temperature to 200℃: Within 25 min. | ||||||
| Temperature drop time (low-temperature chamber) |
Room temperature to -75℃: Within 70 min. | ||||||
| Temperature cycle performance | Cycles | Continuous operation cycles possible: 1,000 | Continuous operation cycles possible: 500 | ||||
| Testing chamber temperature / Testing time |
High temperature | +150℃ / 15 min. | +125℃ / 30 min. | ||||
| Low temperature | -65℃ / 15 min. | -40℃ / 30 min. | |||||
| Temperature measurement position | Downwind side | ||||||
| Sample | Type | Plastic molded IC | |||||
| Weight | 5 kg (IC 3.5 kg + single-stage jig 1.5 kg) | 10 kg (IC 5.5 kg + single-stage jig 4.5 kg) | |||||
| Temperature return time | Within 5 min. | ||||||
| Cooling method | Water-cooling, dual refrigeration, refrigerant: R404A (high-temperature side), R23 (low-temperature side) |
||||||
| Permissible sample weight inside testing chamber | Max. 30 kg (floor surface 20 kg or less, sample shelf 5 kg or less [per shelf]) | Max. 50 kg (floor surface 40 kg or less, sample shelf 11 kg or less [per shelf]) | |||||
| Test chamber capacity | 70L | 200L | |||||
| Item | Air-to-Air Thermal Shock Testing Equipment | ||||||
| ES-76EX | ES-206EX | ||||||
| Type | Stationary sample type, cool/hot air switchable, two/three zone switchable | ||||||
| Performance | Testing temperature range | Low-temperature testing: -70 to 0℃, High-temperature testing: 80 to 200℃ | |||||
| Temperature fluctuation margin | ±0.5℃ | ||||||
| Temperature rise time (high-temperature chamber) |
Room temperature to 200℃: Within 25 min. | ||||||
| Temperature drop time (low-temperature chamber) |
Room temperature to -75℃: Within 70 min. | ||||||
| Temperature cycle performance | Cycles | Continuous operation cycles possible: 1,000 | Continuous operation cycles possible: 500 | ||||
| Testing chamber temperature / Testing time |
High temperature | +150℃ / 15 min. | +125℃ / 30 min. | ||||
| Low temperature | -65℃ / 15 min. | -40℃ / 30 min. | |||||
| Temperature measurement position | Downwind side | ||||||
| Sample | Type | Plastic molded IC | |||||
| Weight | 5 kg (IC 3.5 kg + single-stage jig 1.5 kg) | 10 kg (IC 5.5 kg + single-stage jig 4.5 kg) | |||||
| Temperature return time | Within 5 min. | ||||||
| Cooling method | Water-cooling, dual refrigeration, refrigerant: R404A (high-temperature side), R23 (low-temperature side) |
||||||
| Permissible sample weight inside testing chamber | Max. 30 kg (floor surface 20 kg or less, sample shelf 5 kg or less [per shelf]) | Max. 50 kg (floor surface 40 kg or less, sample shelf 11 kg or less [per shelf]) | |||||
| Test chamber capacity | 70L | 200L | |||||
*Can be operated in an ambient temperature from 0 to 40℃, a cooling water inlet temperature from 5 to 38℃, and a power supply voltage within ±10% rated voltage.
*Performance values are given under these conditions: (1) ambient humidity of 23℃/60% or less, cooling water inlet temperature of 25℃, and The power supply voltage is within ±5% of the rated voltage. However, conditions will vary for the following:
*1: The temperature return time is the point in time where the temperature reaches ±2℃ of the set high temperature or low temperature.
*2: The listed number of cycles available for continuous operation assumes no testing cycle suspension and no testing tank door opening/closing.
*When using continuous operation, be sure to perform defrosting with the following guidelines in mind.
(1) Two-zone operation: This testing apparatus can be set to continuous operation for up to 1,000 cycles (but only for up to 500 hours). However, ambient
temperature conditions or usage conditions could cause frost to form on the low-temperature tank cooler, preventing continuous operation. In such a
case, set a shorter continuous operation time and perform defrosting.
(2) Three-zone operation: Set one defrosting operation every 12 to 24 hours at maximum (but only once per 10 to 20 cycles maximum). These are
recommendations for continuous operation, and are not meant to guarantee temperature cycle performance. Excessive continuous operation could
cause frost to form on the cooler inside the low-temperature chamber, which could activate the safeguard and stop the system in error.
Liquid-to-Liquid Thermal Shock Testing Equipment
Rapid Temperature Changes Enabled by Liquid Heating Medium
Rapid Temperature Changes Enabled by Liquid Heating Medium
| Series | Cooling method | Sample basket capacity | heating medium |
| Excellent (Liquid-to-Liquid) |
Air-cooling | 5.6L | Liquids |
| 9.4L |
The Liquid-to-Liquid type immerses samples alternately in high- and low-temperature liquids. The system uses a heat transfer fluid to change sample temperature faster than in Air-to-Air type systems.
| Series | Cooling method | Sample basket capacity | heating medium |
| Excellent (Liquid-to-Liquid) |
Air-cooling | 5.6L | Liquids |
| 9.4L |
The Liquid-to-Liquid type immerses samples alternately in high- and low-temperature liquids.
The system uses a heat transfer fluid to change sample temperature faster than in Air-to-Air type systems.
Three Measures to Reduce Heating Medium Consumption
- The miniaturization of the test chamber reduced the evaporation volume of the heat transfer fluid.
- We have increased the airtightness of the test system to prevent external fluid leakage.
- The test system incorporates a “heat transfer fluid steam recovery system” to reduce consumption by efficiently recovering and reusing the heat transfer fluid.
Heat transfer fluid consumption reduced by approximately 75% in 1,000 cycles
*Compared models: ES-65L-L (Hitachi previous model) and ES-66EX-L (Cosmopia successor model)
Testing conditions (door not opened/ closed)
| High-temperature testing | 150℃ / 5min. |
| Low-temperature testing | -65℃ / 5min. |
| Sample | Plastic molded IC (2 kg) |
| heat transfer fluid | Galden DO2TS (186 kg) |
Testing conditions
(door not opened/ closed)
| High-temperature testing | 150℃ / 5min. |
| Low-temperature testing | -65℃ / 5min. |
| Sample | Plastic molded IC (2 kg) |
| heat transfer fluid | Galden DO2TS (186 kg) |
Long-term continuous operation
The system is capable of continuous operation for up to 4,000 cycles.
Testing conditions: Cycles between 5 min. at high temperature and 5 min. at low temperature
Equipped with Water Separation System (Standard)
With just the push of a button, water mixed into the heat transfer fluid can be easily separated and discharged.
Space-Saving Design
*ES-65L-L (Hitachi Previous model) and Excellent Series, test chamber volume 5.6L (Cosmopia successor model)
The equipment installation area has been reduced by approximately 21%.
| Series | Installation Area |
| Conventional Model (Hitachi Previous Model) | 21,560㎠ |
| Excellent (Our Chamber Volume: 5.6 L) | 16,900㎠ |
Space-Saving Design
*ES-65L-L (Hitachi Previous model) and Excellent Series, test chamber volume 5.6L (Cosmopia successor model)
The equipment installation area has been reduced by approximately 21%.
| Series | Installation Area |
| Conventional Model (Hitachi Previous Model) | 21,560㎠ |
| Excellent (Our Chamber Volume: 5.6 L) | 16,900㎠ |
Options
We offer a wide range of options.
| Item | Specification | |
| Temperature recorder | Select either paperless or a paper chart (100 mm width; 1 pen, 6 dots). | |
| Communication interface | Select either RS-485, or Ethernet. | |
| Communication interface cable | RS-232C：4m, 10m | |
| Cycle counter | Eight digits, with or without reset function | |
| Signal indicator | Three colors (Green: Operating, Yellow: Power supply, Red: Error) | |
| Water-cooling specification | Replaces condenser with water-cooling | |
| Model-specific options | Auto heating medium liquid filling system |
Automatically fills the low-temperature chamber when the amount of heat transfer fluid is low |
| High-temperature specification | High-temperature testing temperature range: 70 to +200℃ | |
| Sample temperature measurement terminal |
For T thermocouple, 1 or 5 points | |
Options
We offer a wide range of options.
Please scroll horizontally to view.
| Item | Specification | |
| Temperature recorder | Select either paperless or a paper chart (100 mm width; 1 pen, 6 dots). | |
| Communication interface | Select either RS-485, or Ethernet. | |
| Communication interface cable | RS-232C：4m, 10m | |
| Cycle counter | Eight digits, with or without reset function | |
| Signal indicator | Three colors (Green: Operating, Yellow: Power supply, Red: Error) | |
| Water-cooling specification | Replaces condenser with water-cooling | |
| Model-specific options | Auto heating medium liquid filling system |
Automatically fills the low-temperature chamber when the amount of heat transfer fluid is low |
| High-temperature specification | High-temperature testing temperature range: 70 to +200℃ | |
| Sample temperature measurement terminal |
For T thermocouple, 1 or 5 points | |
Outline specifications
Liquid-to-Liquid Thermal Shock Testing Equipment
Outline specifications Liquid-to-Liquid Thermal Shock Testing Equipment
Please scroll horizontally to view.
| Item | Liquid-to-Liquid Thermal Shock Testing Equipment | ||||
| ES-66EX-L | ES-96EX-L | ||||
| Type | Sample basket suspension transport liquid Type, two zones | ||||
| Performance | Testing temperature range | Low-temperature testing: -70 to 0, High-temperature testing: 70 to 150 | |||
| Temperature fluctuation margin | ±2℃ | ||||
| Temperature rise time (high-temperature chamber) |
Room temperature to 150℃: Within 90 min. |
Room temperature to 150℃: Within 120 min. |
|||
| Temperature drop time (low-temperature chamber) |
Room temperature to -65℃: Within 90 min. |
Room temperature to -65℃: Within 120 min. |
|||
| Temperature cycle | Cycles | 25 cycles (low-temperature start) | |||
| Sample | Type | Plastic molded IC | |||
| Weight | 2.6 kg (IC 2.0 kg + sample basket 0.6 kg) | 3.0 kg (IC 2.0 kg + sample basket 1.0 kg) | |||
| Test zones | Low/high temperature | ||||
| Testing chamber temperature |
Low/high temperature |
-65 /150
0
-5
+5
0
|
|||
| Testing time | 5 min. | ||||
| Sample basket transport time | 10 s | ||||
| Sample basket | Loadable sample weight | 4kg | |||
| capacity | 5.6Ｌ | 9.4Ｌ | |||
| Item | Liquid-to-Liquid Thermal Shock Testing Equipment | ||||
| ES-66EX-L | ES-96EX-L | ||||
| Type | Sample basket suspension transport liquid Type, two zones | ||||
| Performance | Testing temperature range | Low-temperature testing: -70 to 0, High-temperature testing: 70 to 150 | |||
| Temperature fluctuation margin | ±2℃ | ||||
| Temperature rise time (high-temperature chamber) |
Room temperature to 150℃: Within 90 min. |
Room temperature to 150℃: Within 120 min. |
|||
| Temperature drop time (low-temperature chamber) |
Room temperature to -65℃: Within 90 min. |
Room temperature to -65℃: Within 120 min. |
|||
| Temperature cycle | Cycles | 25 cycles (low-temperature start) | |||
| Sample | Type | Plastic molded IC | |||
| Weight | 2.6 kg (IC 2.0 kg + sample basket 0.6 kg) | 3.0 kg (IC 2.0 kg + sample basket 1.0 kg) | |||
| Test zones | Low/high temperature | ||||
| Testing chamber temperature |
Low/high temperature |
-65 /150
0
-5
+5
0
|
|||
| Testing time | 5 min. | ||||
| Sample basket transport time | 10 s | ||||
| Sample basket | Loadable sample weight | 4kg | |||
| capacity | 5.6Ｌ | 9.4Ｌ | |||
*Can be operated in an ambient temperature from 0 to 40℃ and with a power supply voltage within ±10% rated voltage.
*Performance values are given under these conditions:
(1) ambient temperature from 10℃ to 30℃, ambient humidity of 60% or lower, and
(2) power supply voltage within ±5% rated voltage. However, conditions will vary for the following:
*1: Values given for temperature rise time and temperature drop time are at an ambient temperature of 20℃, the rated power supply voltage, and all chambers operating as standalones.
*The loadable sample weight does not include the weight of the sample basket.
