Temperature & Humidity Chamber
It achieves a balance between high performance and stability
Constant temperature and humidity chambers are used in various fields and are essential in this development race. They must also have sufficient durability to prevent interruptions due to breakdowns.The COSMOPIA HIGHTECH constant temperature and humidity chamber is equipped with a Hitachi scroll compressor at its core, achieving both performance and stability as a made-in-Japan product.
It achieves a balance between high performance and stability
Constant temperature and humidity chambers are used in various fields and are essential in this development race. They must also have sufficient durability to prevent interruptions due to breakdowns.The COSMOPIA HIGHTECH constant temperature and humidity chamber is equipped with a Hitachi scroll compressor at its core, achieving both performance and stability as a made-in-Japan product.
Find the Right Constant Temperature and Humidity Chamber from Our Lineup for Your Needs
Test evaluations have varying temperature, humidity, and size requirements depending on the product.COSMOPIA HIGHTECH offers a lineup that includes a wide range of temperature and humidity conditions, as well as sizes exceeding 1000L.Our company also offers a lineup that includes energy-saving types, low humidity types, and types compatible with secondary battery charge/discharge tests.You can choose the constant temperature and humidity chamber that is perfect for your testing needs.
This product has durability that ensures reliability
In a rapidly changing competitive development environment, a breakdown of the constant temperature and humidity chamber can greatly increase the development time, creating a serious risk. COSMOPIA HIGHTECH's constant temperature and humidity chambers are equipped with scroll compressors that have low torque fluctuations in all models. The incorporation of this compressor is enhancing reliability.
Introduction to the 3 Types
Basic Type
All Models Equipped with Scroll Compressors
| Type | Temperature range | Humidity range |
Test chamber capacity | ||||
| 227L | 306L | 408L | 800L | 1,000L | |||
| Basic | -20 to ＋100℃ | 20 to 98%RH | 〇 | ー | 〇 | 〇 | 〇 |
| -40 to ＋150℃ | 20 to 98%RH | 〇 | ー | 〇 | 〇 | 〇 | |
| -70 to ＋150℃ | 20 to 98%RH | ー | 〇 | ー | 〇 | ー | |
Our system utilizes a HITACHI compressor with low torque fluctuation.
Therefore, the system achieves excellent durability.
All Models Equipped with Scroll Compressors
Please scroll horizontally to view.
| Type | Temperature range | Humidity range |
Test chamber capacity | ||||
| 227L | 306L | 408L | 800L | 1,000L | |||
| Basic | -20 to ＋100℃ | 20 to 98%RH | 〇 | ー | 〇 | 〇 | 〇 |
| -40 to ＋150℃ | 20 to 98%RH | 〇 | ー | 〇 | 〇 | 〇 | |
| -70 to ＋150℃ | 20 to 98%RH | ー | 〇 | ー | 〇 | ー | |
Our system utilizes a HITACHI compressor with low torque fluctuation.
Therefore, the system achieves excellent durability.
Outline specifications Basic Type
Please select one of the options to view the specifications. （The options are under the table.）
Outline specifications Basic Type
Please select one of the options to view the specifications. （The options are under the table.）
1 : Temperature and humidity chambers（Temperature range -20 to +100℃）
2 : Temperature chambers （Temperature range -20 to +100℃）
3 : Temperature and humidity chambers（Temperature range -40 to +150℃）
4 : Temperature chambers （Temperature range -40 to +150℃）
5 : Temperature and humidity chambers（Temperature range -70 to +150℃）
6 : Temperature chambers （Temperature range -70 to +150℃）
1 : Temperature and humidity chambers
（Temperature range -20 to +100℃）
2 : Temperature chambers
（Temperature range -20 to +100℃）
3 : Temperature and humidity chambers
（Temperature range -40 to +150℃）
4 : Temperature chambers
（Temperature range -40 to +150℃）
5 : Temperature and humidity chambers
（Temperature range -70 to +150℃）
6 : Temperature chambers
（Temperature range -70 to +150℃）
1 : Temperature and humidity chambers
（Temperature range -20 to +100℃）
2 : Temperature chambers
（Temperature range -20 to +100℃）
3 : Temperature and humidity chambers
（Temperature range -40 to +150℃）
4 : Temperature chambers
（Temperature range -40 to +150℃）
5 : Temperature and humidity chambers
（Temperature range -70 to +150℃）
6 : Temperature chambers
（Temperature range -70 to +150℃）
*Can be operated in an ambient temperature from 0 to 40℃ and with a power supply voltage within ±10% of the rated voltage.
Although the system cannot perform as described in the specification table within this operation range, it can operate continuously within this range without stopping due to the safeguard.
*Performance values are given in accordance with JTMA Standard JTMK07/ JTMK09 under the following conditions:
(1) There is no load and no sample in the testing chamber.
(2) The power supply voltage is within ±5% of the rated voltage.
(3) The ambient temperature is from 5 to 35℃. However, the temperature change rate and the time to reach extreme temperatures depend on (4), and whether the lower limit of the temperature range is reached depends on (5).
(4) The ambient temperature condition for the temperature change rate and the time to reach extreme temperatures is 23℃.
(5) The ambient temperature to reach the lower limit of the temperature range is as follows:
MHH and MTH models:
・Ambient temperature: 5 to 30℃ (EC-26)
・Ambient temperature: 5 to 35℃ (EC-46 / EC-86 / EC-106)
HH, HT, LHH, and LTH models:
・Ambient temperature: 5 to 35℃ (all models)
High Performance Type
Excellent Performance for Energy Efficiency, Temperature Change, and Continuous Operation
| Type | Temperature range | Humidity range |
Test chamber capacity |
| High Performance | -40 to ＋150℃ | 20 to 98%RH | 408L |
| 800L |
Lower Power Consumption Through Improved Energy Efficiency
The scroll compressor (600W) of refrigerator 1 operates using inverter control throughout the entire temperature and humidity range, providing excellent energy efficiency.
(The system is equipped with two refrigerators.)
Excellent Performance for Energy Efficiency, Temperature Change, and Continuous Operation
Please scroll horizontally to view.
| Type | Temperature range | Humidity range |
Test chamber capacity |
| High Performance | -40 to ＋150℃ | 20 to 98%RH | 408L |
| 800L |
Lower Power Consumption Through Improved Energy Efficiency
The scroll compressor (600W) of refrigerator 1 operates using inverter control throughout the entire temperature and humidity range, providing excellent energy efficiency.
(The system is equipped with two refrigerators.)
*Comparison between the High Performance Type and the Basic Type running in energy saving mode at an ambient temperature of 23℃.
Achieves Temperature Change Rate of 3℃/min
The refrigeration performance is enhanced by operating refrigerator 1 and refrigerator 2 simultaneously during a temperature change (drop). This performance enables a temperature change rate of 3°C/min for both temperature rise and drop.
Refrigerator 1 : Main inverter-controlled refrigerator
Refrigerator 2 : Refrigerator used during temperature changes and in the low-temperature range
Achieves Temperature Change Rate of 3℃/min
The refrigeration performance is enhanced by operating refrigerator 1 and refrigerator 2 simultaneously during a temperature change (drop). This performance enables a temperature change rate of 3°C/min for both temperature rise and drop.
Refrigerator 1 :
Main inverter-controlled refrigerator
Refrigerator 2 :
Refrigerator used during temperature changes and in the low-temperature range
Equipped with Continuous Operation functionality as a standard
In the operation mode where the main refrigerator operates on its own, the sub refrigerator provides backup support during the main refrigerator’s defrost cycle to achieve continuous operation.
（While the sub refrigerator is providing backup support, the main refrigerator performs an off-cycle defrost.）
This continuous operation function enables efficient evaluation testing.
*This function provides both constant temperature control and constant temperature and humidity control when the dry-bulb temperature is from 10 to 40℃.
Equipped with Continuous Operation functionality as a standard
In the operation mode where the main refrigerator operates on its own, the sub refrigerator provides backup support during the main refrigerator’s defrost cycle to achieve continuous operation.
（While the sub refrigerator is providing backup support, the main refrigerator performs an off-cycle defrost.）
This continuous operation function enables efficient evaluation testing.
*This function provides both constant temperature control and constant temperature and humidity control when the dry-bulb temperature is from 10 to 40℃.
*The temperature/humidity may change when switching refrigerators.
(example for illustrative purposes)
*The temperature/humidity may change when switching refrigerators.
Outline specifications High Performance Type
Please select one of the options to view the specifications. （The options are under the table.）
1 : Temperature and humidity chambers
2 : Temperature chambers
Outline specifications
High Performance Type
Please select one of the options to view the specifications. （The options are under the table.）
1 : Temperature and humidity chambers
2 : Temperature chambers
1 : Temperature and humidity chambers
2 : Temperature chambers
*Can be operated in an ambient temperature from 0 to 40℃ and with a power supply voltage within ±10% of the rated voltage.
Although the system cannot perform as described in the specification table within this operation range, it can operate continuously within this range without stopping due to the safeguard.
*Performance values are given in accordance with JTMA Standard JTM K 07 / JTM K 09 under the following conditions:
(1) There is no load and no sample in the testing chamber.
(2) The power supply voltage is within ±5% of the rated voltage.
(3) The ambient temperature is from 5 to 35℃. However, the temperature change rate and the time to reach extreme temperatures depend on (4), and whether the lower limit of the temperature range is reached depends on (5).
(4) The ambient temperature condition for the temperature change rate and the time to reach extreme temperatures is 23℃.
(5) The ambient temperature to reach the lower limit of the temperature range is from 5 to 35℃.

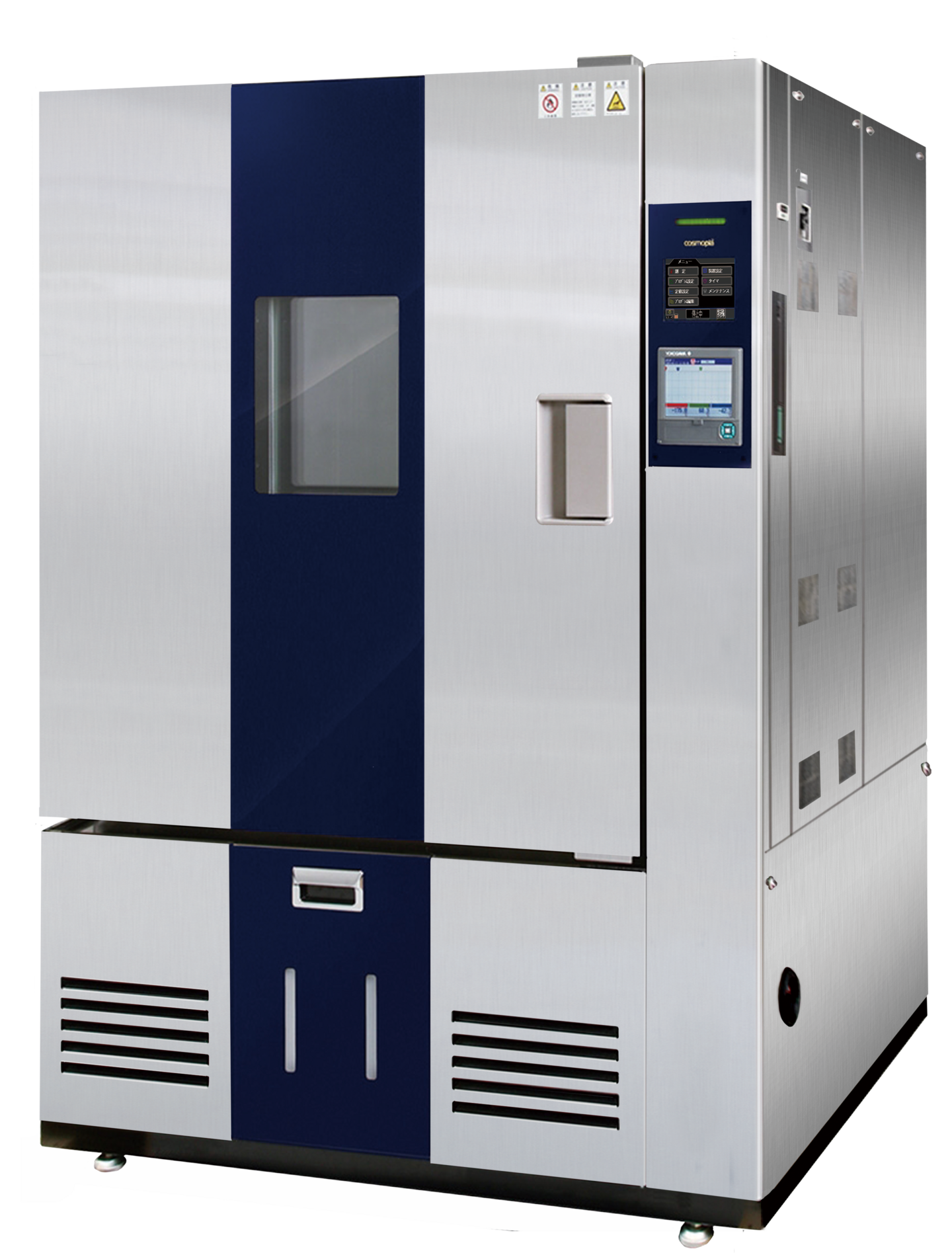

Large Capacity Type
Capable of testing large products such as LCD displays
| Type | Temperature range | Humidity range |
Test chamber capacity | Test chamber dimensions （W×D×H） |
| Large Capacity | -40 to ＋150℃ | 20 to 98%RH | 1,500L | 1,000mm×1,500mm×1,000mm |
Capable of testing large products such as LCD displays
Please scroll horizontally to view.
| Type | Temperature range | Humidity range |
Test chamber capacity | Test chamber dimensions （W×D×H） |
| Large Capacity | -40 to ＋150℃ | 20 to 98%RH | 1,500L | 1,000mm×1,500mm×1,000mm |
The dimensions of the test chamber have been expanded, allowing the testing of large samples such as 50-inch-class LCD panels or solar cell modules.
The dimensions of the test chamber have been expanded, allowing the testing of large samples such as 50-inch-class LCD panels or solar cell modules.
Handles 2 kW Heat Loads
The system has a permissible heat generation load of 2 kW at 40℃ and 90% RH (high load mode). It can handle testing with a heat generation load, such as testing powered samples.
Uses less power
The system is equipped with two refrigeration cycles and uses a combination of inverter control and fixed-speed control. During low-load testing, power consumption is reduced because of refrigerator controls adjusted to suit testing conditions.
Outline specifications Large Capacity Type
Outline specifications
Large Capacity Type
Please scroll horizontally to view.
| Item | Temperature and humidity chamber | Temperature chamber | ||||
| EC-155MHHP | EC-155MTHP | |||||
| Performance | Temperature range | -40 to ＋150℃ | ||||
| Humidity range (for humidity-capable chamber) | 20 to 98％RH | ー | ||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃ / ±3.0％RH | ±0.3℃ | |||
| 100.1°C or higher | ±0.5℃ | ±0.5℃ | ||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 4.0℃ / 10.0%RH | 4.0℃ | |||
| 100.1°C or higher | 5.0℃ | 5.0℃ | ||||
| Spatial temperature/ humidity deviation (no load, no sample) |
100.0℃ or lower | 3.0℃ / 8.0%RH | 3.0℃ | |||
| 100.1°C or higher | 4.0℃ | 4.0℃ | ||||
| Temperature change rate (no load, no sample) |
Drop | 1.0℃ / min.（＋131 to -21℃） | ||||
| Rise | 2.0℃ / min.（-21 to ＋131℃） | |||||
| Time to reach temperature extreme (no load, no sample) |
Drop | Within 70 min.（＋20 to -40℃） | ||||
| Rise | Within 50 min.（＋20 to ＋150℃） | |||||
| Test chamber capacity | 1,500L | |||||
| Item | Temperature and humidity chamber | Temperature chamber | ||||
| EC-155MHHP | EC-155MTHP | |||||
| Performance | Temperature range | -40 to ＋150℃ | ||||
| Humidity range (for humidity-capable chamber) | 20 to 98％RH | ー | ||||
| Temperature/ humidity fluctuation (no load, no sample) |
100.0℃ or lower | ±0.3℃ / ±3.0％RH | ±0.3℃ | |||
| 100.1°C or higher | ±0.5℃ | ±0.5℃ | ||||
| Temperature/ humidity gradient (no load, no sample) |
100.0℃ or lower | 4.0℃ / 10.0%RH | 4.0℃ | |||
| 100.1°C or higher | 5.0℃ | 5.0℃ | ||||
| Spatial temperature/ humidity deviation (no load, no sample) |
100.0℃ or lower | 3.0℃ / 8.0%RH | 3.0℃ | |||
| 100.1°C or higher | 4.0℃ | 4.0℃ | ||||
| Temperature change rate (no load, no sample) |
Drop | 1.0℃ / min.（＋131 to -21℃） | ||||
| Rise | 2.0℃ / min.（-21 to ＋131℃） | |||||
| Time to reach temperature extreme (no load, no sample) |
Drop | Within 70 min.（＋20 to -40℃） | ||||
| Rise | Within 50 min.（＋20 to ＋150℃） | |||||
| Test chamber capacity | 1,500L | |||||
*Can be operated in an ambient temperature from 0 to 40℃, a cooling water inlet temperature from 5 to 38℃, and a power supply voltage within ±10% rated voltage.
*Performance values are given in accordance with JTMA Standard JTMK 0 7/JTM K 09 under the following conditions:
(1) There is no load and no sample.
(2) The power supply voltage is within ±5% of the rated voltage.
(3) The ambient temperature is from 5 to 35°C and the cooling water inlet temperature is from 15 to 30℃.
However, values given for the temperature change rate and the time to reach extreme temperatures are at an ambient temperature of 23℃ and a cooling water inlet temperature of 25℃.
